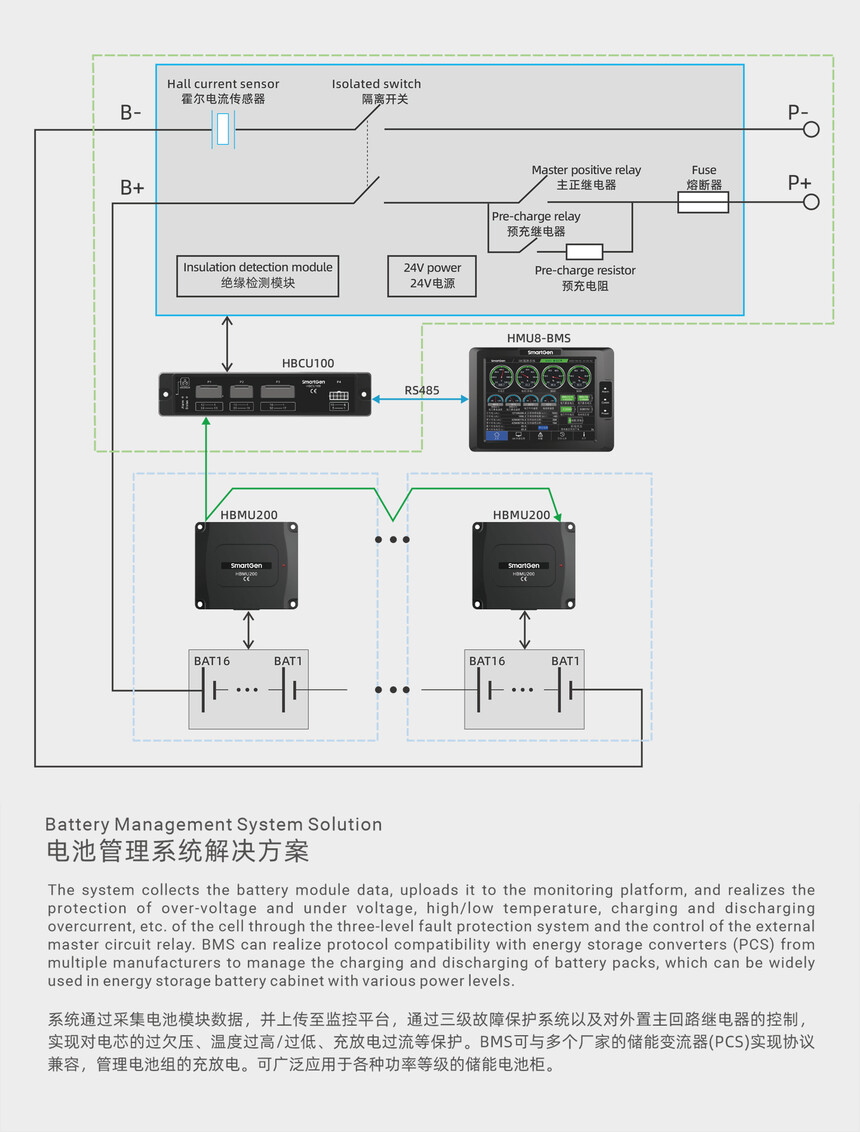

Battery Management System Solution

電池管理系統解決方案

The system collects the battery module data, uploads it to the monitoring platform, and realizes theprotection of over-yoltage and under voltage, high/low temperature, charging and dischargingovercurrent, etc. of the cell through the three-level fault protection system and the control of the externamaster circuit relay. BMS can realize protocol compatibility with eneray storage converters (PCS) frommultiple manufacturers to manage the charging and discharging of battery packs, which can be widelyused in energy storage battery cabinet with various power levels.

系統通過采集電池模塊數據，并上傳至監控平臺，通過三級故障保護系統以及對外置主回路繼電器的控制，實現對電芯的過欠壓、溫度過高/過低、充放電過流等保護。BMS可與多個廠家的儲能變流器(PCS)實現協議兼容，管理電池組的充放電。可廣泛應用于各種功率等級的儲能電池柜。
